GUHEMA Brillant
EMo 5 Co 5 / 1.3243 - M35 BKE

The fast path to our Article No.
Grade + Code Number (dimension) + TPI
Example: BKE + 3304 + L = BKE3304L

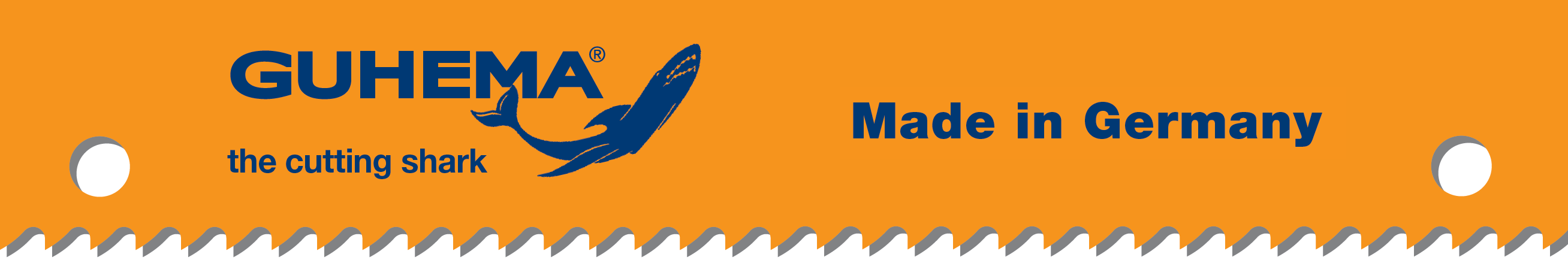

blade-image
TPI
Normal Teeth
Positive Teeth Variable Positive Teeth
Dimensions Indicator 2 3 4 6 8 10 14 18 22 2/3 3/4 4/6 6/8 8/10 Ø
in mm: B x S L ...C ...E ...G ...H ...I ...J ...L ...N ...O ...T ...U ...V ...W ...Ü in mm
30 x 1.5 300 ...3304... 8,5
30 x 2.0 300 ...4304... 8,5
32 x 1.5 350 ...3355... 8,5
32 x 1.5 400 ...3405... 8,5
32 x 1.5 450 ...3455... 8,5
32 x 2.0 350 ...4355... 8,5
32 x 2.0 400 ...4405... 8,5
32 x 2.0 450 ...4455... 8,5
36 x 1.5 350 ...3357... 8,5
36 x 2.0 350 ...4357... 8,5
36 x 2.0 400 ...4407... 8,5
36 x 2.0 450 ...4457... 8,5
40 x 2.0 450 ...4459... 8,5
40 x 2.0 450 ...4509... 8,5
45 x 2.0 550 ...4551... 10,5
48 x 2.5 500 ...5503... 10,5
50 x 2.0 500 ...4504... 10,5
50 x 2.0 600 ...4604... 10,5
50 x 2.5 500 ...5504... 10,5
50 x 2.5 575 ...5574... 10,5
50 x 2.5 600 ...5604... 10,5
52 x 2.5 575 ...5575... 10,5
52 x 2.5 600 ...5605... 10,5
55 x 2.5 650 ...5657... 10,5
55 x 2.5 700 ...5707... 10,5

= deliverable toothing
