Sable and Special Sable Sawblades
No matter what type of powersaw you are operating, what material you are intending to separate,
what the profile looks like or whether or not you
have to "follow the curve" with your saw – GUHEMA
sable and special sable sawblades meet all of your
requirements.
Sable Sawblades
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing
- For the machining of sheet metal up to 1 mm of thickness
| Toothing |
Metal cutting area |
|
32
TPI
|
< 1 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101Q
|
...1151Q
|
...1201Q
|
...1221Q
|
...1251Q
|
...1291Q
|
...2151Q
|
...2201Q
|
...2221Q
|
...2251Q
|
...2291Q
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing
- For the machining of sheet metal up to 1 mm of thickness
| Toothing |
Metal cutting area |
|
24
TPI
|
> 1 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101P
|
...1151P
|
...1201P
|
...1221P
|
...1251P
|
...1291P
|
...2151P
|
...2201P
|
...2221P
|
...2251P
|
...2291P
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness of 1.5 - 3 mm
| Toothing |
Metal cutting area |
|
18
TPI
|
1,5 - 3 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101N
|
...1151N
|
...1201N
|
...1221N
|
...1251N
|
...1291N
|
...2151N
|
...2201N
|
...2221N
|
...2251N
|
...2291N
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing

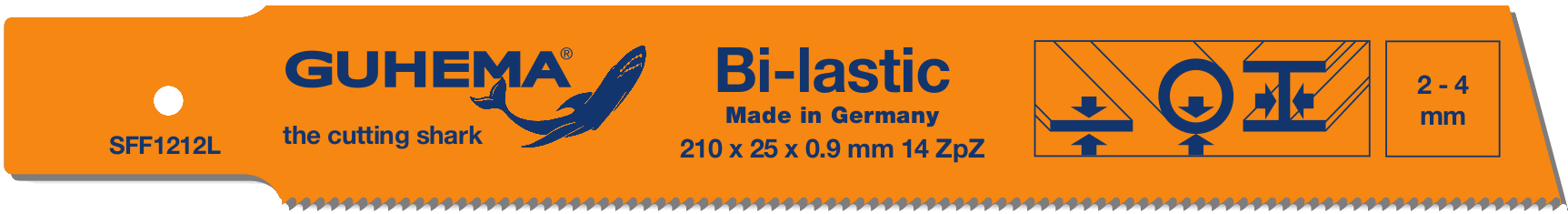

- For the machining of metal/profiles with a wall thickness of 2 - 4 mm
| Toothing |
Metal cutting area |
|
14
TPI
|
2 - 4 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101L
|
...1151L
|
...1201L
|
...1221L
|
...1251L
|
...1291L
|
...2151L
|
...2201L
|
...2221L
|
...2251L
|
...2291L
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled, variable special toothing
- For the machining of metal/profiles with a wall thickness of 3 - 8 mm
- Special blade for pallet repair
- For the machining of wood with metal residues
| Toothing |
Metal cutting area |
|
10 - 14
TPI
|
3 - 8 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101Z
|
...1151Z
|
...1201Z
|
...1221Z
|
...1251Z
|
...1291Z
|
...2151Z
|
...2201Z
|
...2221Z
|
...2251Z
|
...2291Z
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- For the machining of metal/profiles with a wall thickness of 4 - 12 mm
- For the machining of wood with metal residues and a clean cutting line
| Toothing |
Metal cutting area |
Wood cutting area |
|
10
TPI
|
4 - 12 mm |
< 60 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101J
|
...1151J
|
...1201J
|
...1221J
|
...1251J
|
...1291J
|
...2151J
|
...2201J
|
...2221J
|
...2251J
|
...2291J
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled, variable special toothing
- For the machining of stainless steel
- For the machining of metal/profiles with a wall thickness > 6 mm
| Toothing |
Metal cutting area |
|
8 - 10
TPI
|
> 6 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101Ü
|
...1151Ü
|
...1201Ü
|
...1221Ü
|
...1251Ü
|
...1291Ü
|
...2151Ü
|
...2201Ü
|
...2221Ü
|
...2251Ü
|
...2291Ü
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing

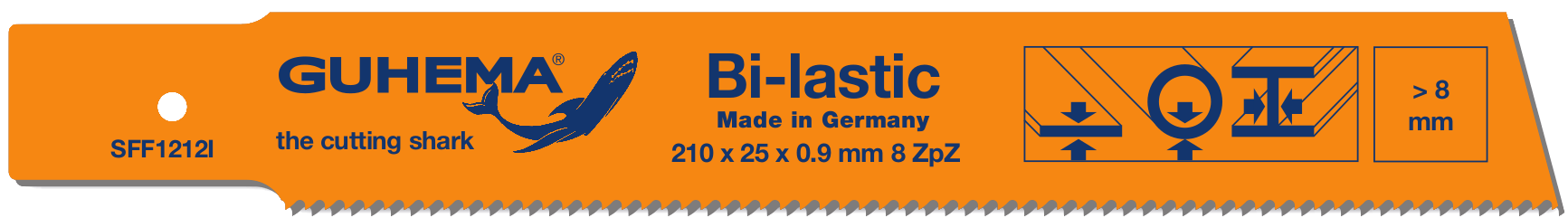

- For the machining of metal/profiles with a wall thickness > 8 mm
- For the machining of wood with metal residues
- Special blade for the refurbishment of old buildings
| Toothing |
Metal cutting area |
Wood cutting area |
|
8
TPI
|
> 8 mm |
< 70 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101I
|
...1151I
|
...1201I
|
...1221I
|
...1251I
|
...1291I
|
...2151I
|
...2201I
|
...2221I
|
...2251I
|
...2291I
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Sharply milled toothing
- Special blade for window frame removal
- For the quick machining of wood with metal residues
- For the machining of metal/profiles with a wall thickness > 10 mm
| Toothing |
Metal cutting area |
Wood cutting area |
|
6
TPI
|
> 10 mm |
< 80 mm |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101H
|
...1151H
|
...1201H
|
...1221H
|
...1251H
|
...1291H
|
...2151H
|
...2201H
|
...2221H
|
...2251H
|
...2291H
|
GUHEMA Bi-lastic
SSF
GUHEMA Bi-Co-lastic
SSM
- Special blade for drywall construction
- Plasterboard and dry wood
- Also separates metal inclusions
| Toothing |
Wood cutting area |
Mineral cutting area |
|
9
TPI
|
< 80 mm |
Plasterboard |
|
Sawblade length [mm]
|
100 |
150 |
200 |
225 |
250 |
290 |
150 |
200 |
225 |
250 |
290 |
|
Width x Thinkness [mm]
|
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 0.9 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
19 x 1.27 |
|
Indicator
|
...1101DZ
|
...1151DZ
|
...1201DZ
|
...1221DZ
|
...1251DZ
|
...1291DZ
|
...2151DZ
|
...2201DZ
|
...2221DZ
|
...2251DZ
|
...2291DZ
|

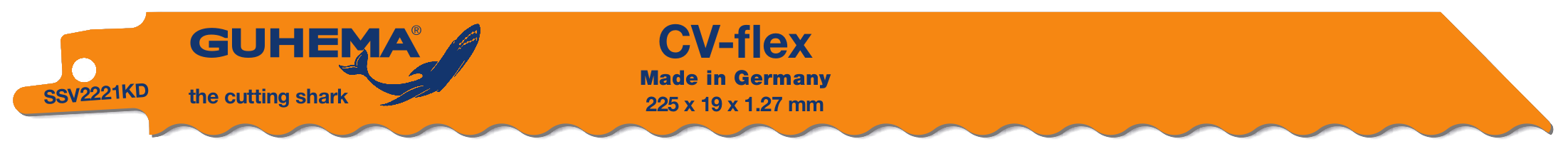

- Convex cutter ground on both sides
- Cuts insulation material quickly and cleanly (mineral wool, styrodur, polystyrene, etc.)
- Paper / cardboard
- Leather
- Rubber
- Cuts in both directions (double-sided cutting)
|
Sawblade length [mm]
|
225 |
300 |
|
Width x Thinkness [mm]
|
19 x 1.27 |
19 x 1.27 |
|
Order No.:
|
SSV2221KD
|
SSV2301KD
|
- Sharply milled toothing
- For the machining of hard and soft wood
| Toothing |
Wood cutting area |
|
3
TPI
|
< 175 mm |
|
Sawblade length [mm]
|
225 |
300 |
|
Width x Thinkness [mm]
|
19 x 1.27 |
19 x 1.27 |
|
Order No.:
|
SSV2221E
|
SSV2301E
|
- Sharpened teeth
- For the aggressive machining of soft and hard wood with extended service life due to hardened teeth
| Toothing |
Wood cutting area |
|
3
TPI
|
< 190 mm |
|
Sawblade length [mm]
|
240 |
|
Width x Thinkness [mm]
|
19 x 1.27 |
|
Order No.:
|
SSV2241E
|
- Sharpened teeth
- For the quick machining of soft wood with extended service life due to hardened teeth
- Cuts in both directions (double-sided cutting)
| Toothing |
Wood cutting area |
|
4 - 5
TPI
|
< 190 mm |
|
Sawblade length [mm]
|
240 |
|
Width x Thinkness [mm]
|
19 x 1.27 |
|
Order No.:
|
SSV2241V
|
- Cylindrical hard metal (carbide) toothing
- For cutting aerated concrete and gas concrete
|
Sawblade length [mm]
|
235 |
300 |
300 |
400 |
450 |
|
Width x Thinkness [mm]
|
20 x 1.2 |
20 x 1.2 |
50 x 1.2 |
20 x 1.2 |
50 x 1.2 |
|
Order No.:
|
SSI2231B
|
SSI2301B
|
SSI2304B
|
SSI2401B
|
SSI2454B
|
- Cylindrical hard metal (carbide) toothing
- For cutting masonry, mortar and bricks
- Also separates small metal inclusions
|
Sawblade length [mm]
|
150 |
235 |
300 |
300 |
400 |
450 |
|
Width x Thinkness [mm]
|
20 x 1.2 |
20 x 1.2 |
20 x 1.2 |
50 x 1.2 |
20 x 1.2 |
50 x 1.2 |
|
Order No.:
|
SSI2151E
|
SSI2231E
|
SSI2301E
|
SSI2304E
|
SSI2401E
|
SSI2454E
|
- Rectangular hard metal (carbide) toothing
- Construction Site Professional (Allrounder)
- For cutting masonry and limestone
- Also achieves good results when cutting aerated concrete
|
Sawblade length [mm]
|
150 |
235 |
300 |
300 |
400 |
450 |
|
Width x Thinkness [mm]
|
20 x 1.2 |
20 x 1.2 |
20 x 1.2 |
50 x 1.2 |
20 x 1.2 |
50 x 1.2 |
|
Order No.:
|
SSI2151C
|
SSI2231C
|
SSI2301C
|
SSI2304C
|
SSI2401C
|
SSI2454C
|

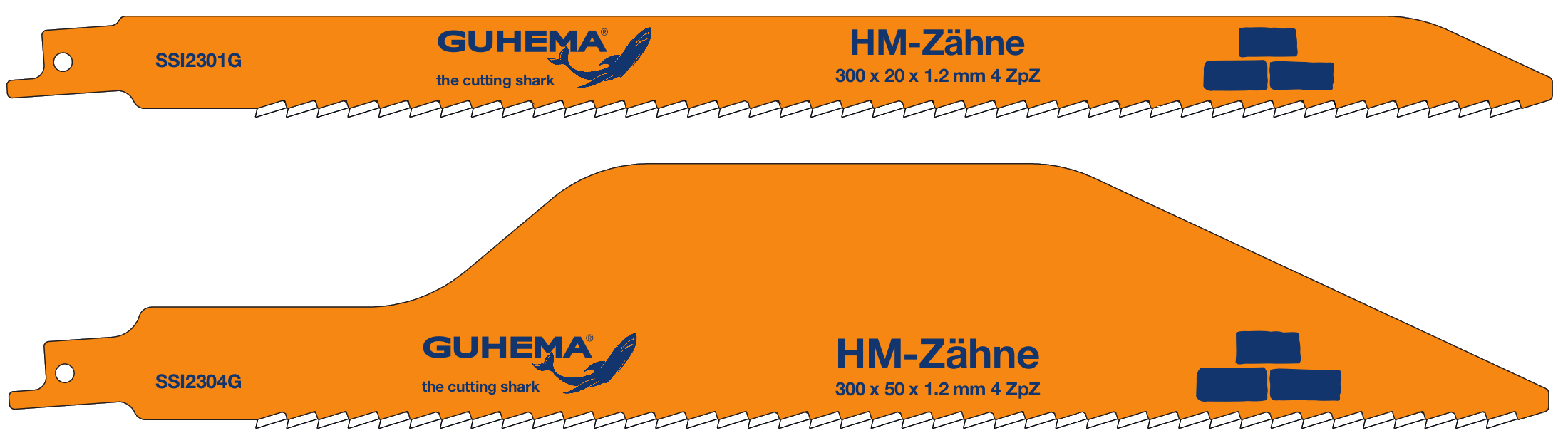

- Rectangular hard metal (carbide) toothing
- For cutting hollow blocks and limestone
|
Sawblade length [mm]
|
150 |
235 |
300 |
300 |
400 |
450 |
|
Width x Thinkness [mm]
|
20 x 1.2 |
20 x 1.2 |
20 x 1.2 |
50 x 1.2 |
20 x 1.2 |
50 x 1.2 |
|
Order No.:
|
SSI2151G
|
SSI2231G
|
SSI2301G
|
SSI2304G
|
SSI2401G
|
SSI2454G
|

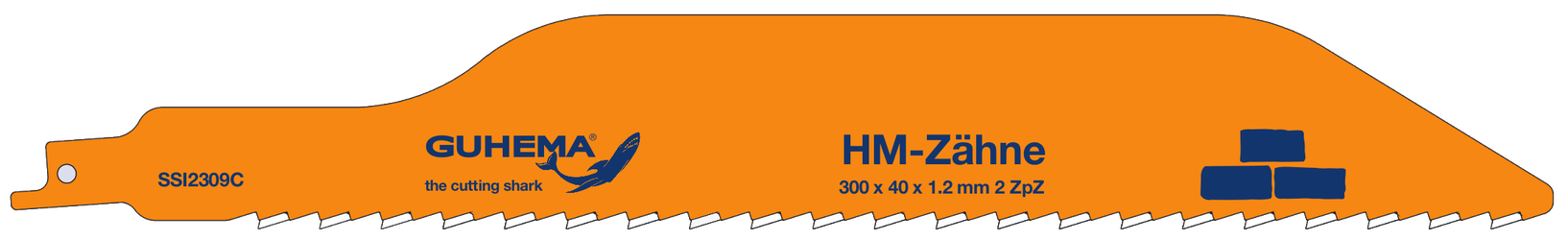

- Rectangular hard metal (carbide) toothing
- Construction Site Professional Plus (Allrounder)
- For cutting masonry and limestone
- Achieves good results when cutting aerated concrete
- Extra strong tooth body for an even straighter cutting path
|
Sawblade length [mm]
|
235 |
300 |
450 |
|
Width x Thinkness [mm]
|
40 x 1.2 |
40 x 1.2 |
40 x 1.2 |
|
Order No.:
|
SSI2239C
|
SSI2309C
|
SSI2459C
|

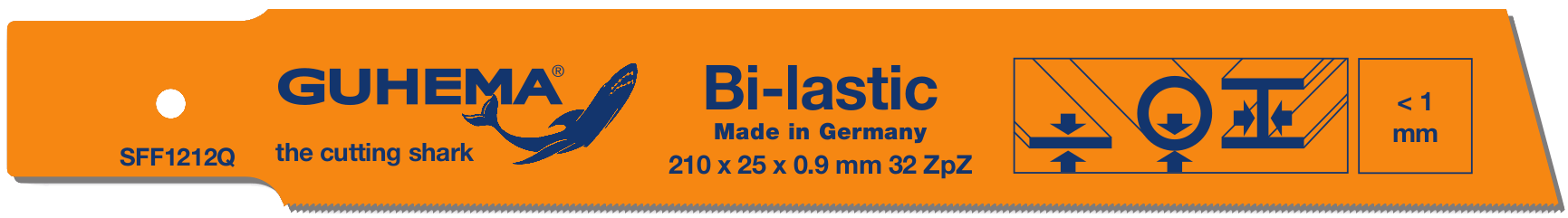

Special Sable Sawblades
- Sharply milled toothing
- For the machining of sheet metal up to 1 mm of thickness
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
32
TPI
|
< 1 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152Q
|
SRF1202Q
|
SRF1252Q
|
SRF1292Q
|
SRF2152Q
|
SRF2202Q
|
SRF2252Q
|
SRF2292Q
|
- Sharply milled toothing
- For the machining of sheet metal starting with 1 mm of thickness
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
24
TPI
|
> 1 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152P
|
SRF1202P
|
SRF1252P
|
SRF1292P
|
SRF2152P
|
SRF2202P
|
SRF2252P
|
SRF2292P
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness of 1.5 - 3 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
18
TPI
|
1,5 - 3 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152N
|
SRF1202N
|
SRF1252N
|
SRF1292N
|
SRF2152N
|
SRF2202N
|
SRF2252N
|
SRF2292N
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness of 2 - 4 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
14
TPI
|
2 - 4 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152L
|
SRF1202L
|
SRF1252L
|
SRF1292L
|
SRF2152L
|
SRF2202L
|
SRF2252L
|
SRF2292L
|
- For the machining of metal/profiles with a wall thickness of 4 - 12 mm
- For the machining of wood with metal residues and a clean cutting line
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
10
TPI
|
4 - 12 mm |
< 60 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152J
|
SRF1202J
|
SRF1252J
|
SRF1292J
|
SRF2152J
|
SRF2202J
|
SRF2252J
|
SRF2292J
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness > 8 mm
- For the machining of wood with metal residues
- Special blade for the refurbishment of old buildings
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
8
TPI
|
> 8 mm |
< 70 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152I
|
SRF1202I
|
SRF1252I
|
SRF1292I
|
SRF2152I
|
SRF2202I
|
SRF2252I
|
SRF2292I
|
- Sharply milled toothing
- Special blade for window frame removal
- For the quick machining of wood with metal residues
- For the machining of metal/profiles with a wall thickness > 10 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
6
TPI
|
> 10 mm |
< 80 mm |
|
Sawblade length [mm]
|
150 |
200 |
250 |
290 |
150 |
200 |
250 |
290 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SRF1152H
|
SRF1202H
|
SRF1252H
|
SRF1292H
|
SRF2152H
|
SRF2202H
|
SRF2252H
|
SRF2292H
|
- Sharply milled toothing
- For the machining of sheet metal up to 1 mm of thickness
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
32
TPI
|
< 1 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152Q
|
SFF1212Q
|
SFF1232Q
|
SFF1262Q
|
SFF1302Q
|
SFF2152Q
|
SFF2212Q
|
SFF2232Q
|
SFF2262Q
|
SFF2302Q
|
- Sharply milled toothing
- For the machining of sheet metal starting with 1 mm of thickness
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
24
TPI
|
> 1 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152P
|
SFF1212P
|
SFF1232P
|
SFF1262P
|
SFF1302P
|
SFF2152P
|
SFF2212P
|
SFF2232P
|
SFF2262P
|
SFF2302P
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness of 1.5 - 3 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
18
TPI
|
1,5 - 3 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152N
|
SFF1212N
|
SFF1232N
|
SFF1262N
|
SFF1302N
|
SFF2152N
|
SFF2212N
|
SFF2232N
|
SFF2262N
|
SFF2302N
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness of 2 - 4 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
|
14
TPI
|
2 - 4 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152L
|
SFF1212L
|
SFF1232L
|
SFF1262L
|
SFF1302L
|
SFF2152L
|
SFF2212L
|
SFF2232L
|
SFF2262L
|
SFF2302L
|
- For the machining of metal/profiles with a wall thickness of 4 - 12 mm
- For the machining of wood with metal residues and a clean cutting line
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
10
TPI
|
4 - 12 mm |
< 60 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152J
|
SFF121J
|
SFF1232J
|
SFF1262J
|
SFF1302J
|
SFF2152J
|
SFF2212J
|
SFF2232J
|
SFF2262J
|
SFF2302J
|
- Sharply milled toothing
- For the machining of metal/profiles with a wall thickness > 8 mm
- For the machining of wood with metal residues
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
8
TPI
|
> 8 mm |
< 70 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152I
|
SFF1212I
|
SFF1232I
|
SFF1262I
|
SFF1302I
|
SFF2152I
|
SFF2212I
|
SFF2232I
|
SFF2262I
|
SFF2302I
|
- Sharply milled toothing
- For the quick machining of wood with metal residues
- For the machining of metal/profiles with a wall thickness > 10 mm
- Extra wide and strong sawblade for straight cuts
| Toothing |
Metal cutting area |
Wood cutting area |
|
6
TPI
|
> 10 mm |
< 80 mm |
|
Sawblade length [mm]
|
150 |
210 |
235 |
260 |
300 |
150 |
210 |
235 |
260 |
300 |
|
Width x Thinkness [mm]
|
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 0.9 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
25 x 1.27 |
|
Order No.:
|
SFF1152H
|
SFF1212H
|
SFF1232H
|
SFF1262H
|
SFF1302H
|
SFF2152H
|
SFF2212H
|
SFF2232H
|
SFF2262H
|
SFF2302H
|
