No. 20 GUHEMA Kristall
Carbon steel (125 Cr 1)
- Hardened tooth bandsaw blade
- For unalloyed steels up to medium strengths
The fast path to our Article No.
Qualität + Code Number (dimension) + TPI
z.B.: NC20 + 0606 + L = NC200606L
z.B.: NC20 + 0606 + L + Sawblade length = NC200606L03800
| TPI | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Indicator | 3 | 4 | 6 | 8 | 10 | 14 | 18 | 22 | ||||||
| in mm: B x S | ...E | ...G | ...H | ...I | ...J | ...L | ...N | ...O | |||||||
| 6 x 0.65 | ...0606... | K | K | S | S | S | S | S | |||||||
| 8 x 0.65 | ...0806... | K | K | S | S | S | S | S | |||||||
| 10 x 0.65 | ...1006... | SK | SK | S | S | S | S | S | |||||||
| 13 x 0.65 | ...1306... | SK | SK | S | S | S | S | ||||||||
| 16 x 0.65 | ...1606... | S | SK | S | S | S | |||||||||
| 16 x 0.8 | ...1608... | SK | Sk | S | S | S | |||||||||
| 20 x 0.8 | ...2008... | K | SK | S | S | S | S | ||||||||
| 25 x 0.9 | ...2509... | K | SK | S | S | S | S | ||||||||

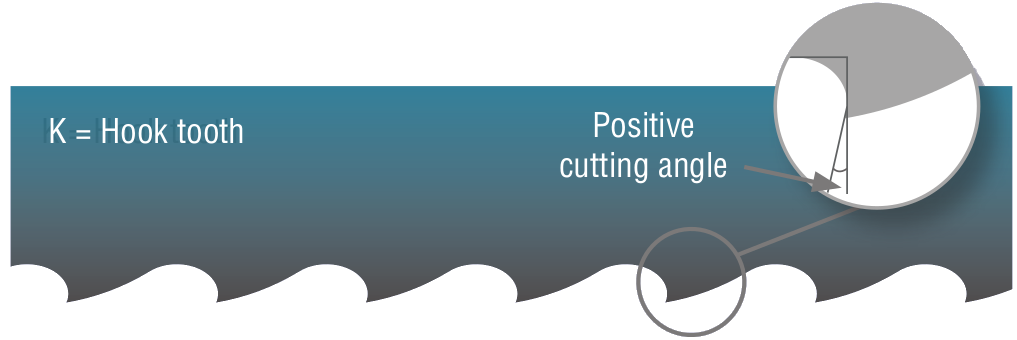

K = Hook tooth
