No. 35V GUHEMA Bi-Co-lastic
M42 Grade (Material No. 1.3247)

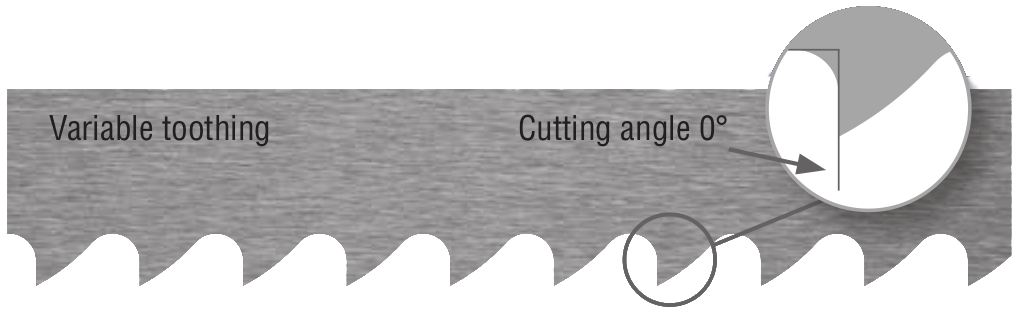

- Wear-resistant variable toothing made of M42
- Especially suitable for vibration-reduced sawing of thin to medium workpieces
The fast path to our Article No.
Qualität + Code Number (dimension) + TPI
z.B.: NC35 + 1009 + Z = NC351009Z
z.B.: NC35 + 1009 + Z + Sawblade length = NC351009Z03800
| TPI | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Indicator | 3-4 | 4-6 | 5-8 | 6-10 | 8-12 | 10-14 | ||||||||
| in mm: B x S | ...U | ...V | ...W | ...X | ...Y | ...Z | |||||||||
| 10 x 0.9 | ...1009... | ||||||||||||||
| 13 x 0.65 | ...1306... | ||||||||||||||
| 13 x 0.9 | ...1309... | ||||||||||||||
| 20 x 0.9 | ...2009... | ||||||||||||||
| 27 x 0.9 | ...2709... | ||||||||||||||
| 34 x 1.1 | ...3411... | ||||||||||||||
| 41 x 1.3 | ...4113... | ||||||||||||||
| 54 x 1.3 | ...5413... | ||||||||||||||
K = Hook tooth
