No. 35VP GUHEMA Bi-Co-lastic
M42 Grade (Material No. 1.3247)

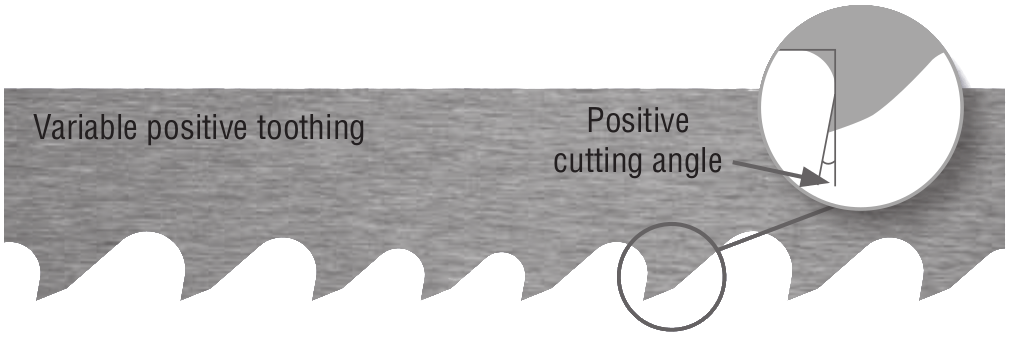

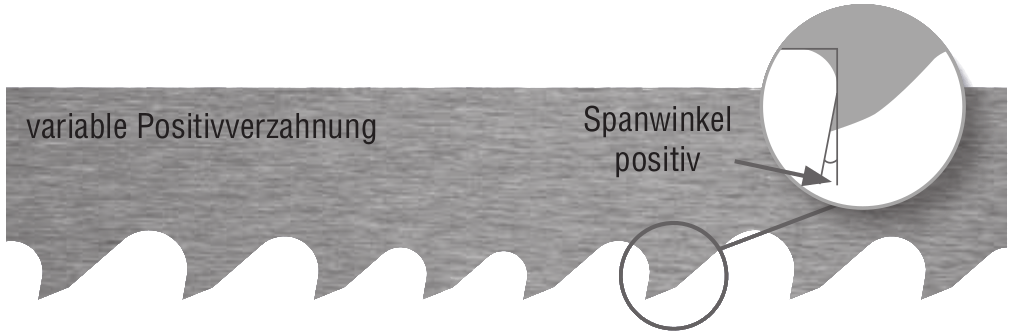

- Wear-resistant variable positive toothing made of M42
- Especially suitable for vibration-reduced sawing of medium to large workpieces
- High machining performance and long tool life
The fast path to our Article No.
Qualität + Code Number (dimension) + TPI
z.B.: NC35 + 2009 + VP = NC352009VP
z.B.: NC35 + 2009 + VP + Sawblade length = NC352009VP03800
| TPI | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Indicator | 1,4/2 | 2-3 | 3-4 | 4-6 | 5-8 | 0,75-1,25 | 1,1-1,4 | 1,4-2 | 2-3 | 3-4 | 4-6 | 5-8 | ||
| in mm: B x S | ...S | ...T | ...U | ...V | ...W | ...*P | ...RP | ...SP | ...TP | ...UP | ...VP | ...WP | |||
| 20 x 0.9 | ...2009... | ||||||||||||||
| 27 x 0.9 | ...2709... | ||||||||||||||
| 34 x 1.1 | ...3411... | ||||||||||||||
| 41 x 1.3 | ...4113... | ||||||||||||||
| 54 x 1.3 | ...5413... | ||||||||||||||
| 54 x 1.6 | ...5416... | ||||||||||||||
| 67 x 1.6 | ...6716... | ||||||||||||||
| 80 x 1.6 | ...8016... | ||||||||||||||
K = Hook tooth
