No. 46VP GUHEMA HM-Zähne
Chrome alloyed carrier strip with hard metal teeth
- Ground, hart metal coated bandsaw blade

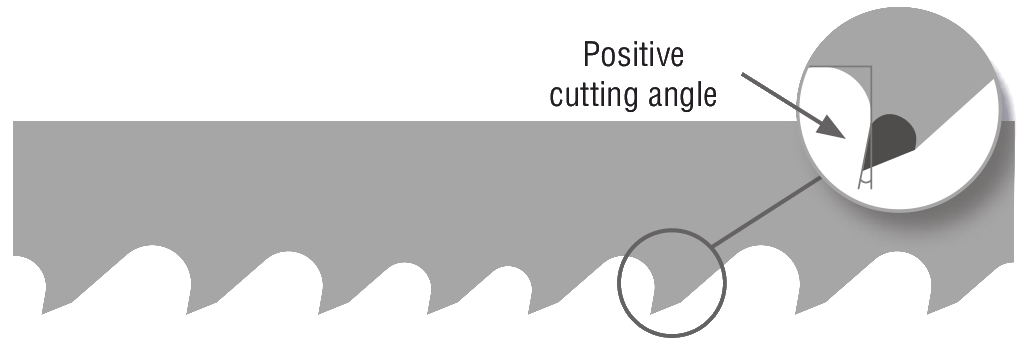

- The ground sawteeth with pre- and finishing cutters allow for maximum service lifes and cutting speeds
- Designed for materials that are hard to machine and silted workpieces
The fast path to our Article No.
Qualität + Code Number (dimension) + TPI
z.B.: NC46 + 1309 + T = NC461309T
z.B.: NC46 + 1309 + T + Sawblade length = NC461309T03800
| TPI | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Indicator | 0,9/1,1 | 1,4/2 | 1,9/2,1 | 2-3 | 3-4 | |||||||||
| in mm: B x S | ...Ä | ...S | ...Ü | ...T | ...U | ||||||||||
| 13 x 0.9 | ...1309... | ||||||||||||||
| 20 x 0.9 | ...2009... | ||||||||||||||
| 27 x 1.1 | ...2711... | ||||||||||||||
| 34 x 1.1 | ...3411... | ||||||||||||||
| 41 x 1.3 | ...4113... | ||||||||||||||
| 54 x 1.6 | ...5416... | ||||||||||||||
| 67 x 1.6 | ...6716... | ||||||||||||||
| 80 x 1.6 | ...8016... | ||||||||||||||
= deliverable toothing
